MG-CNC-3200-2
Three axis profile processing center
the machine is suitable for all kinds of aluminum profile installation hole, flow hole, lock hole, mould hole processing. All holes and grooves on the same machining surface can be finished by one clamping, which has high efficiency. Two HSD motorized spindle with 5.5KW power are adopted to realize the quick tool changing function. Using Germany PA CNC system, the two heads can processe independently, which supports scanning function, scanning bar code or two dimensional code of workpiece, and the control system of the equipment automatically loads the corresponding machining program. The operation is convenient and quick. 4、The system is equipped with automatic measuring workpiece length device to repair X-axis calibration function, the system has simple programming operation function. Adopt high quality AC servo motor, ball screw, linear slide rail and bearing to ensure the equipment has higher machining accuracy.

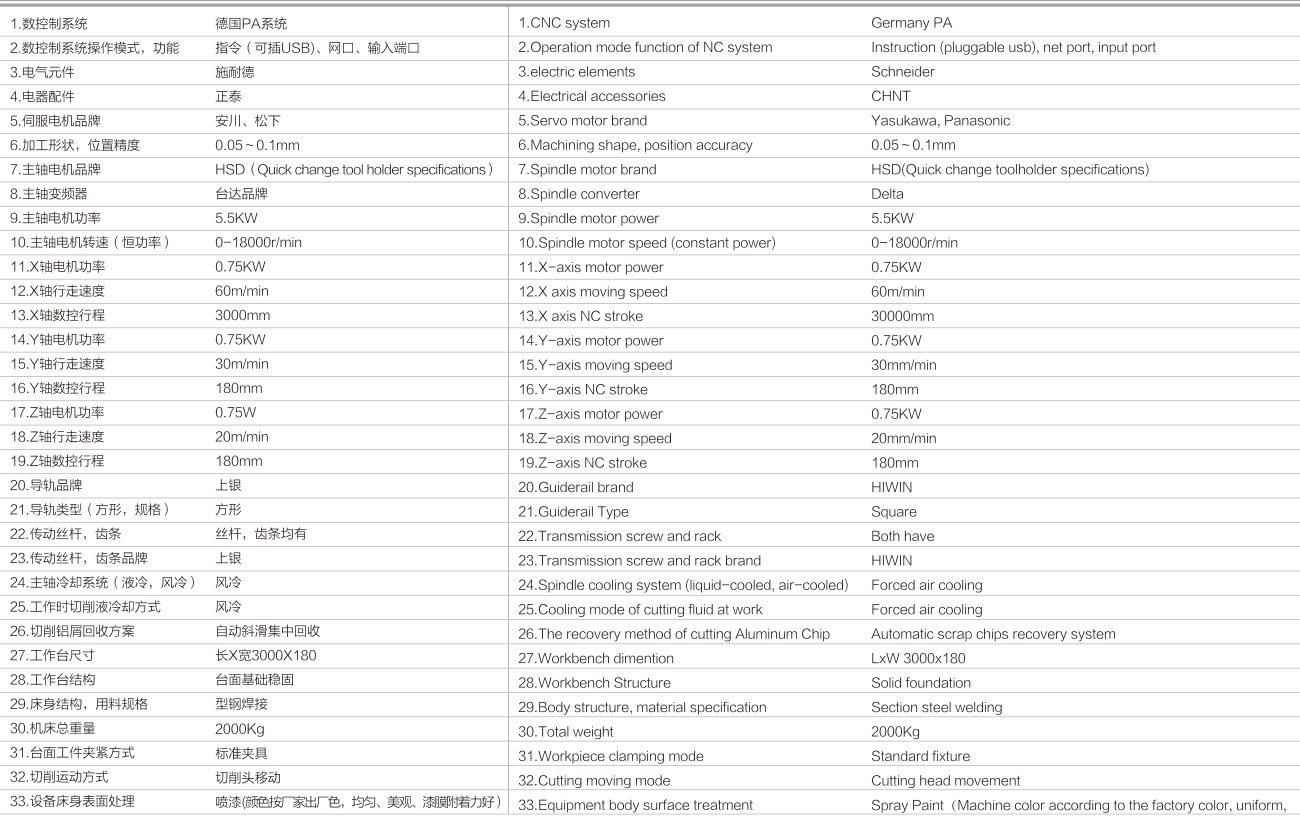

Product details parameters
